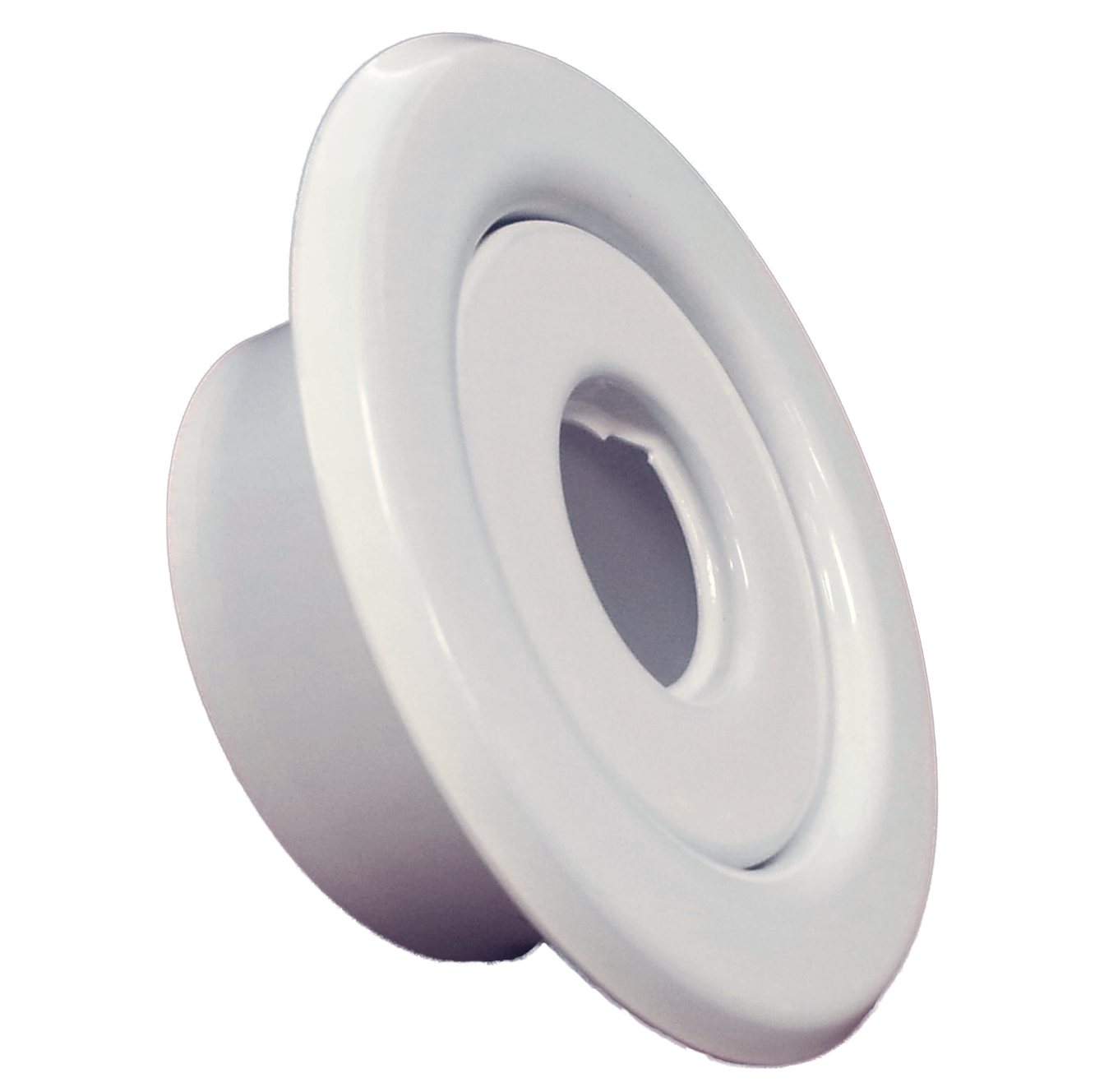

| Typical Escutcheons |
| |
Consult the manufactures data sheet for esc plate to use. |
|
|
| Part Number |
Description |
|
|
| Recessed Escutcheons Style 10 (Long), 1/2" NPT (Order Separately) |
| 56-701-2-010 |
1/2" Brass Plated (Style 10) |
|
|
| 1888N |
1/2" Chrome Plated (NFE Style 10) Non Listed |
|
|
| 56-701-9-010 |
1/2" Chrome Plated (Style 10) |
|
|
| 1889N |
1/2" White Color Coated (NFE Style 10) Non Listed |
|
|
| 56-701-4-010 |
1/2" White Color Coated (Style 10) |
|
|
| Recessed Escutcheons Style 20 (Short), 1/2" NPT (Order Separately) |
| 56-705-2-010 |
1/2" Brass Plated (Style 20) |
|
|
| 1742N |
1/2" Chrome Plated (NFE Style 20) Non Listed |
|
|
| 56-705-9-010 |
1/2" Chrome Plated (Style 20) |
|
|
| 1744N |
1/2" White Color Coated (NFE Style 20) Non Listed |
|
|
| 56-705-4-010 |
1/2" White Color Coated (Style 20) |
|
|
| Recessed Escutcheons Style 30 (Short), 3/4" NPT (Order Separately) |
| 56-705-2-011 |
3/4" Brass Plated (Style 30) |
|
|
| 851SN |
3/4" Chrome Plated (NFE Style 30) Non Listed |
|
|
| 56-705-9-011 |
3/4" Chrome Plated (Style 30) |
|
|
| 853SN |
3/4" White Color Coated (NFE Style 30) Non Listed |
|
|
| 56-705-4-011 |
3/4" White Color Coated (Style 30) |
|
|
| Recessed Escutcheons Style 40 (Long), 3/4" NPT (Order Separately) |
| 56-700-2-010 |
3/4" Brass Plated (Style 40) |
|
|
| 851N |
3/4" Chrome Plated (NFE Style 40) Non Listed |
|
|
| 56-700-9-010 |
3/4" Chrome Plated (Style 40) |
|
|
| 853N |
3/4" White Color Coated (NFE Style 40) Non Listed |
|
|
| 56-700-4-010 |
3/4" White Color Coated (Style 40) |
|
|
| Recessed Escutcheons Style 50 (Short), 1/2" NPT (Order Separately) |
| 56-700-2-010 |
1/2" Brass Plated (Style 50) |
|
|
| 56-700-9-010 |
1/2" Chrome Plated (Style 50) |
|
|
| 56-700-4-010 |
1/2" White Color Coated (Style 50) |
|
|
| Protective Cover (Order Separately) |
| 92-000-0-412 |
Plastic Cap Protective Cover - LF-II |
|
|
| 100-250700 |
Plastic Protective Cap (FRII) Disposable |
|
|
| |
|
|
|
| |
|
|
|
| Miscellaneous Escutcheons |
| |
|
|
|
| Part Number |
Description |
|
|
| Model 65 Flat Escutcheons |
| 1150 |
1/2" Flat Escutcheon-Brass |
|
|
| 1184 |
3/4" Flat Escutcheon-Brass |
|
|
| 1153N |
1/2" Flat Escutcheon-Chrome Non Listed |
|
|
| 1152N |
3/4" Flat Escutcheon-Chrome Non Listed |
|
|
| 1154N |
1/2" Flat Escutcheon-White Non Listed |
|
|
| 1175 |
3/4" Flat Escutcheon-White |
|
|
| Model 401 2-Piece Adjustable Extended Escutcheons |
| 1192 |
1/2" Cup for 2 pc. Escutcheon-Chrome |
|
|
| 01-650 |
1/2" Retrofit Escutcheon (Split) - Chrome |
|
|
| 1193 |
3/4" Cup for 2 pc. Escutcheon-Chrome |
|
|
| 1198 |
Skirt for 2 pc. Escutcheons-Chrome |
|
|
| 1194 |
1/2" Cup for 2 pc. Escutcheon-Brass |
|
|
| 1195 |
3/4" Cup for 2 pc. Escutcheon-Brass |
|
|
| 1199 |
Skirt for 2 pc. Escutcheon-Brass |
|
|
| 1196 |
1/2" Cup for 2 pc. Escutcheon-White |
|
|
| 1197 |
3/4" Cup for 2 pc. Escutcheon-White |
|
|
| 1200 |
Skirt for 2 pc. Escutcheon-White |
|
|
| 1203 |
1/2" Cup for 2 pc. Escutcheon-Off White |
|
|
| 1204 |
3/4" Cup for 2 pc. Escutcheon-Off White |
|
|
| 1205 |
Skirt for 2 pc. Escutcheon-Off White |
|
