ZW4100/ZW4100G - 1 1/2" Male (Factory Set)

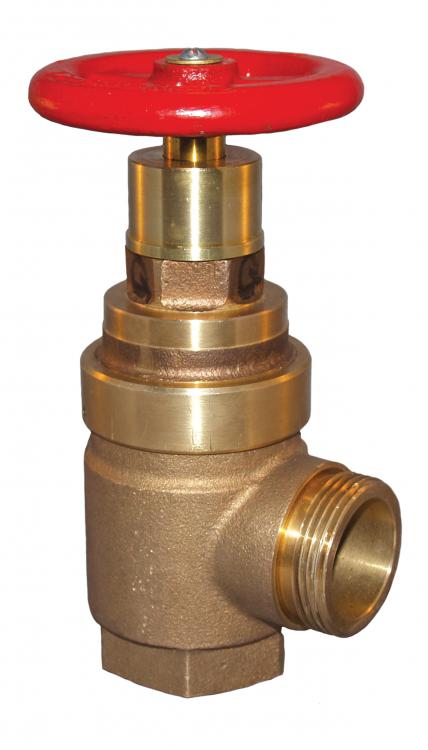

Model ZW4100 Pressure-Tru Fire Hose Valve

The Pressure-Tru ZW4100 Series Pressure Reducing Valve is listed as a standpipe valve for individual hose stations in CLASS II systems. Regulates pressure under both flow and no-flow conditions.

- UL (R) Listed
- C-UL Listed

Material
Main valve body         Cast bronze ASTM B 584
Elastomers                  Buna Nitrile (FDA approved)
                                    EPDM (FDA approved)

Features
Sizes: 1 1/2"
Maximum inlet pressure        400 psi
Inlet connection
              (FNPT)                  ANSI B1.20.1
              (Groove)                AWWA C606
Outlet Connection               Male Hose (NH) NFPA 163
Manufactured in the USA
Factory Set
