MINI-UNDERCUT+™

Mini-Undercut+™

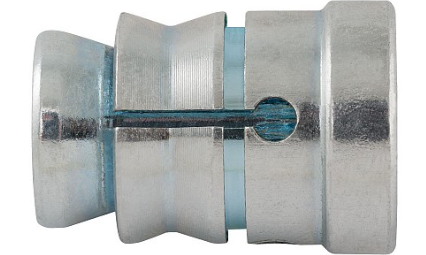

The Mini-Undercut+ anchor is an internally threaded, self-undercutting anchor designed for performance in cracked and uncracked concrete. Suitable base materials include post-tension concrete (PT slabs), hollow-core precast concrete, normal-weight concrete and lightweight concrete. The Mini-Undercut+ anchor is installed into a pre-drilled hole with a power tool and a setting tool. After installation a steel element is threaded into the anchor body. The result is an anchor which can provide consistent behavior at shallow embedments as low as 3/4 of an inch.

Features & Specs

• Ideal for precast hollow-core plank and post-tensioned concrete slabs
• ANSI carbide stop bit with enlarged shoulder for accurate drill depth
• Internally threaded anchor for easy adjustment and removability of threaded rod or bolt
• Cracked concrete tested alternative to a mini dropin anchor
• Anchor design allows for shallow embedment as low as 3/4"
• Drill and drive the anchor with one tool for fast anchor installation

Specifications

Catalog Number: PFM2111820

Rod Diameter: 3/8"

Anchor Size: 3/8" x 3/4"

Pack Qty. 100

View Mini-Undercut+™ Video
