A7B Brass Nozzles

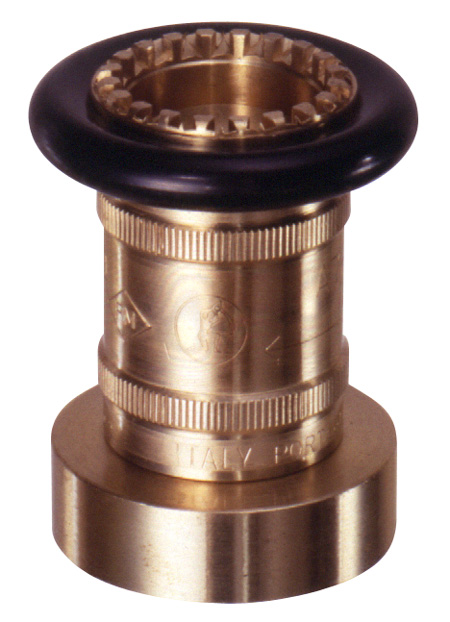

Model A7B Nozzles 1 1/2" (38mm), constructed of forged brass with adjustable fog, straight stream and shut off. ULC, UL and FM Approved.

A7BNB	Nozzle 1 1/2" (38mm), Brass with small bumper NPSH	Brass
A7BNC	Nozzle 1 1/2" (38mm), Brass with small bumper NPSH	Chrome
A7BHB	Nozzle 1 1/2" (38mm), Brass with small bumper NST	Brass
A7BHC	Nozzle 1 1/2" (38mm), Brass with small bumper NST	Chrome

Model A7B Nozzles 2 1/2" (65mm), constructed of forged brass with adjustable fog, straight stream and shut off. ULC, UL and FM Approved

A7BCB	Nozzle 2 1/2" (65mm), Brass with small bumper CSA	Brass
A7BCC	Nozzle 2 1/2" (65mm), Brass with small bumper CSA	Chrome
A7BBB	Nozzle 2 1/2" (65mm), Brass with small bumper BCT	Brass
A7BBC	Nozzle 2 1/2" (65mm), Brass with small bumper BCT	Chrome
A7BQB	Nozzle 2 1/2" (65mm), Brass with small bumper QST	Brass
A7BQC	Nozzle 2 1/2" (65mm), Brass with small bumper QST	Chrome
A7BNHB	Nozzle 2 1/2" (65mm), Brass with small bumper NST	Brass
A7BNHC	Nozzle 2 1/2" (65mm), Brass with small bumper NST	Chrome

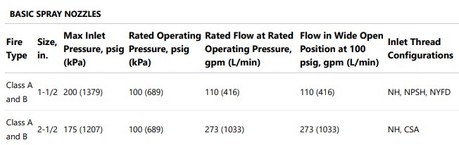

Below chart will provide more infomation on pressure and flow rates.
