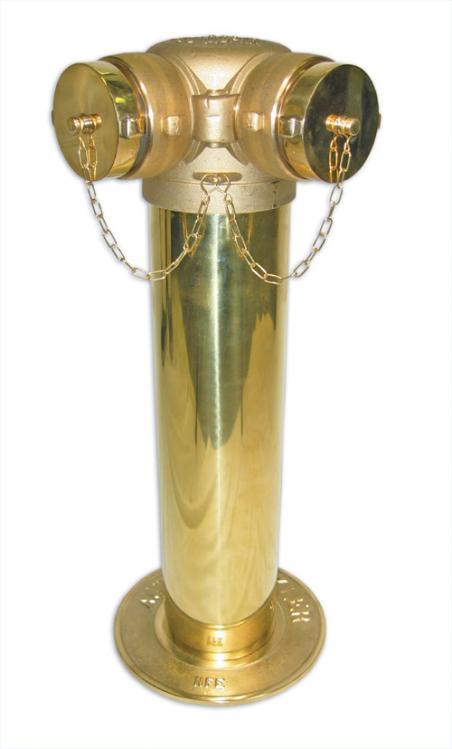

Model 207 Sidewalk Siamese

Application:  Free Standing Fire Department connection when a wall mounted FD connection is not practical.  Double Inlet with 500 GPM inlet capacity used to supplement water supply in standpipe or sprinkler systems.  Body comes with a single swing clapper to prevent water from exiting the second inlet when not in use. Standard with (2) 2" (65mm) swivel hose thread inlet connections with 4' (100mm) or 6' (152mm) main connection.Standard plate lettering is Auto. Spkr., Standpipe or combined Auto. Spkr / Standpipe.

Construction:  Cast Brass Body, Brass or Red Aluminum escutcheon plate, Red aluminum break-off caps or brass plugs, 18" (457mm) polished brass cover sleeve.

Rated Pressure: 300 PSI /2068.50 kpa Options: Satin Chrome, Polished Brass, Polished Chrome.  Sleeve Available in Polished Finish Only.

Approvals:  ULC, UL, FM

×
