Medimum Security Reel Cabinets

Facility Type:

Medium Security Institutions, Court Houses, Youth Detention Facilities, Police Stations, Mental Health Facilities.

Desgined for Model HRS Reel installation.  See data sheet for more information


Standard Product Specifications:
12 Ga. FULL METAL Painted Adjustable Fronts with 1/2" return trim - Grey
14 Ga. Painted Tubs - White
Hinge: Standard Piano Hinges
Lock: Model 151 Standard Cylinder Lock
OPTIONS: Medium Security Cabinet

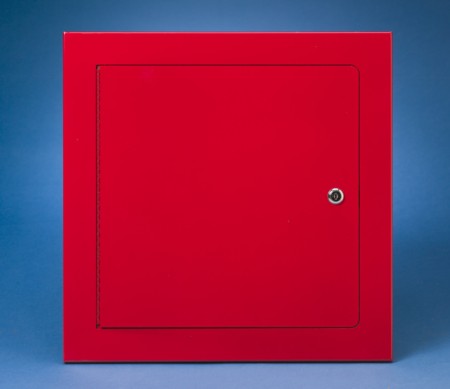

Paint Options:  Red, White, Yellow, Black   Photo above shown with baked red enamel paint option.  Standard is grey.
Handle: "D" chrome pull handle
Hinges: Heavy Duty Piano Hinge
            Security Hinge Model 850T
Lock:  Mortise Deadbolt with Cylinder
Cabinet Identification: Die Cut Decals (Red or White) Fire Extinguisher, Fire Hose, Fire Dept. Valve



Model Tub Size Frame O.D. Interior Equipment
CR-1310-MED 30"x30"x12"  34" x 34"  Hose Reel only
CR-1340-MED 34"x34"x12" 38" x 38" Reel, Extinguisher, (2) Hose Valves
CS-1310-MED (Surface) 30"x30"x12"  30" x 30" Hose Reel only
CS-1340-MED (Surface) 34"x 34"x12" 34" x 34" Reel, Extinguisher, (2) Hose Valves

Confirm with local building codes or authority having jurisdiction regarding restrictions on locked fire protection cabinets.


Baked enamel standard cabinets not designed for outdoor use.  Use other materials such as NFE fiberglass, stainless steel or galvanized cabinets for increased weather resistance.
