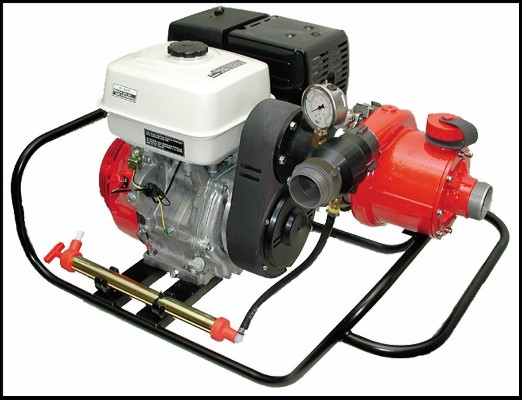

The 13HP single cylinder, overhead valve, 4-stroke Honda engine features an automotive style air cleaner, electric start (battery optional) with manual recoil backup, integral fuel tank, as well as over-speed protection. This engine is coupled via a maintenance-free speed increaser to a two-stage foam-compatible pump renowned for its performance and reliability. All pump components are stainless, brass or anodized aluminum, for long trouble free use. The pump end is interchangeable with the Wick F200-105. This higher volume pump is still in the portable class and its uses include vehicle-mounted applications. Hand priming pump and pressure gauge are included. Non-return discharge valve is optional.
Dimension |
|
|
Motor |
|
Length |
33" |
(84cm) |
Honda |
4 stroke |
Width |
19.5" |
(50 cm) |
Power |
13 HP@3600rpm |
Height |
18.5" |
(47 cm) |
Ignition |
Electronic |
Weight |
117 lbs |
(53 kg) |
Fuel Tank Integral 1.7 US Gal/6.5 Litres |
|
Suction |
2" NPSH |
(50 mm) |
PrimingManual piston pump (Optional) |
|
Discharge |
1 " NPSH |
(38 mm) |
