ES-1000X Series Intelligent Addressable FACP

ES-1000X Series

Intelligent Addressable FACP with 954 Point Capacity

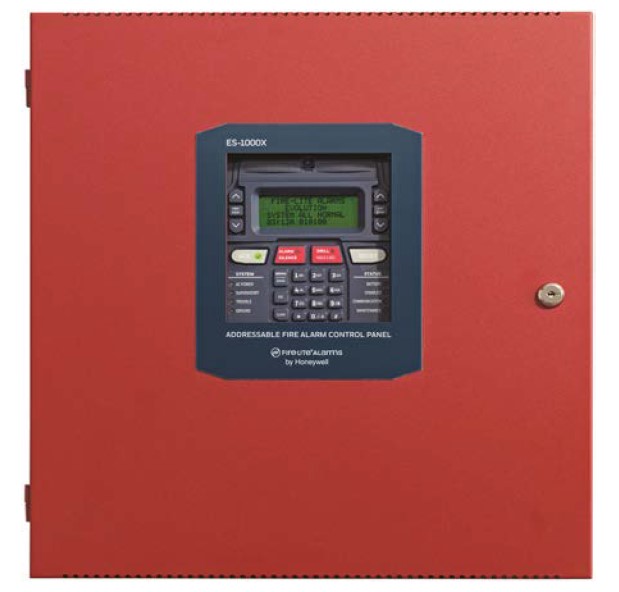

The Fire•Lite ES-1000X, ES-1000XC, and ES-1000XI are intelligent
addressable Fire Alarm Control Panels (FACP) with a pre-installed
loop card. The ES-1000X control panels support up to 318 addressable
devices per Signaling Line Circuit (SLC) (Digital Communication
Loop) (DCL) loop (159 detectors and 159 modules) with a maximum of
three loops. With an extensive list of powerful features, the ES-1000X
programs just like Fire•Lite’s other addressable products while offering
expanded support for up to 954 devices for larger and more complex
installations.
The ES-1000X and ES-1000XC feature a pre-installed IPOTS-COM
communicator which transmits system status (alarms, troubles, AC
loss, etc.) to a Central Station via the public switched telephone network.
The communicator’s internet monitoring capability sends alarm
signals over the Internet saving the monthly cost of two dedicated
business telephone lines. Although not required, the secondary telephone
line may be retained providing backup communication over the
public switched telephone line. Optional cellular reporting is available
using the CLSS Pathway or GSM Communicators.
Remote and local programming of the control panel is possible using
the FS-Tools Upload/Download utility. Programming databases can be
uploaded/downloaded via the panel’s USB port and thumb drive. This
allows download of the entire program or upload of the entire program,
history file, walk-test data, current status and system voltages.
The power supply and all electronics are contained on a circuit board
supported on a new quick install chassis and housed in a metal cabinet.
Available accessories include local and remote upload/download
software, remote annunciators, and reverse polarity/city box transmitter
(4XTMF).
