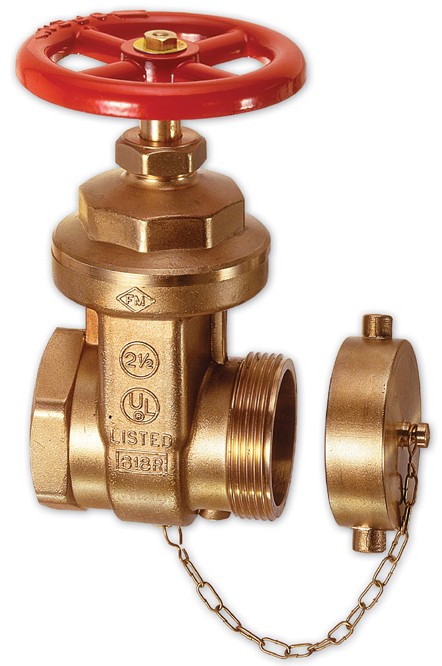

Model A53 Gate Valve

Application:  Used as a test connection for testing sprinkler and standpipe systems, and fire pump testing as a control valve. Not designed for permanent installation as a fire department valve in standpipe systems.

Construction:  Forged brass body with red hand wheel, solid brass wedge disc with tapered seats.

Rated Pressure: 300 psi / 2069 kpa

Approvals:  UL & FM

Optional Finishes:

A53B  2 1/2" Rough Brass

A53C  2 1/2" Rough Chrome

A53PB  2 1/2" Polished Brass

A53PC  2 1/2" Polished Chrome

Also Available in 3"  (76mm) x 2 1/2" (65mm) size
Also Available with "L" shaped speed crank handle.

WARNING:　 NOT DESIGNED FOR FIRE DEPARTMENT STANDPIPE VALVE　

Use NFE Model A86 soft seated valves only for FDC Connections in fire protection cabinets, stairwells and other end of line standpipe riser connections.
