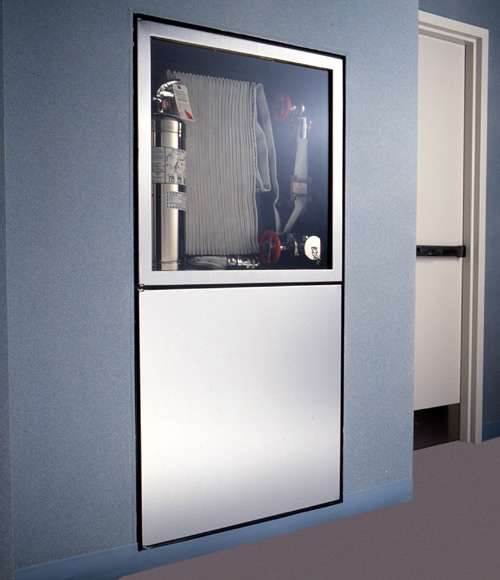

Model CHV-6634 Combination Valve and Hose Cabinets

Double section cabinets to accommodate fire hose equipment and sprinkler or standpipe zone control valves.

The CHV-6634 cabinets have similar construction and accessories as the Knight Cabinets but with one common frame and double door with two independent components.

The Fire Hose section is standard in 30' x 30' x 8' (762mm x 762 x 203mm) and valve section with options of 8', 10' , 12', or 14' depths. (203mm, 254mm, 305mm, 356mm).

Available in either vertical (CHV-6634V) or horizontal (CHV-6634H) installations or with valve section on top or bottom.



Warning:  Not suitable for outdoor applications.
For weather protection depending on environment use galvanized, stainless steel or fiberglass materials or special finishes such as epoxy or zinc coatings.
Contact our customer service department for assistance on cabinets for outdoor or harsh environments.

×
