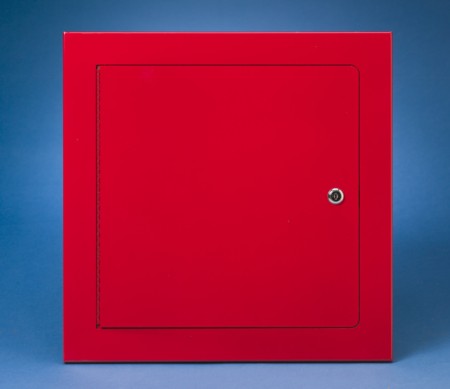

Minimum Security Valve Cabinets

Facility Type:
Public areas exposed to vandalism. Parking Garages, School Gyms

Confirm with local building codes or authority having jurisdiction regarding restrictions on locked fire protection cabinets

Standard Product Specifications:
14 Ga. FULL METAL Painted Adjustable Fronts with 1/2" return trim - Grey
18 Ga. Painted Tubs - White
Hinges: Standard Piano Hinges
Lock: Model 151 Standard Cylinder Lock

OPTIONS:  Minimum Security Cabinet
Paint Options:  Red, White, Yellow, Black
Handle: "D" chrome pull handle
Front: Breakglass lock round opening & pull lever for emergency access.
Front Material:  304 Stainless with No. 4 Satin Finish
Cabinet Identification:   Die Cut Decals (Red or White) "Fire Extinguisher", "Fire Hose" or "Fire Dept. Valve"

Model Tub Size Frame O.D. Interior Equipment
C-975-MIN 14" x 14" x 8"  18" x 18"  Model A56 2 1/2" Angle
CV-200-8-MIN 30" x 30" x 8"  34" x 34"  Sprinkler Zone Control Valves
CV-200-10-MIN 30" x 30" x 10"  34" x 34"  Sprinkler Zone Control Valves
CV-200-14-MIN 30" x 30" x 14"  34" x 34"  Sprinkler Zone Control Valves
×
