Minimum Security Reel Cabinets

Facility Type: Public areas exposed to vandalism. Parking Garages, School Gyms

FOR REEL TYPE INFORMATION CLICK ON THE PDF DATA SHEET

 Standard Product Specifications:

14 Ga. FULL METAL Painted Adjustable Fronts with 1/2" return trim - Grey
18 Ga. Painted Tubs - White
Hinges: Standard Piano Hinges
Lock: Model 151 Standard Cylinder Lock

OPTIONS: Minimum Security Cabinet

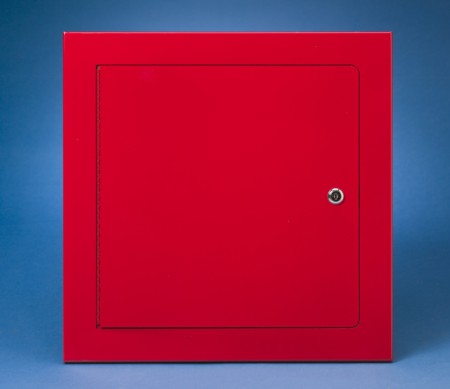

Paint Options: Red, White, Yellow, Black   Standard cabinets provided with grey enamel paint.  Above photo in red for illustration only
Handle: "D" chrome pull handle
Front: Breakglass lock round opening & pull lever for emergency access.
Front Material: 304 Stainless with No. 4 Satin Finish
Cabinet Identification: Die Cut Decals (Red or White) "Fire Extinguisher", "Fire Hose" or "Fire Dept. Valve"

Model Tub Size Frame O.D. Interior Equipment
CR-1310-MIN 30" x 30" x 12"  34" x 34"  Hose Reel only
CR-1340-MIN 34" x 34" x 12" 38" x 38" Reel, Extinguisher, (2) Hose Valves
CS-1310-MIN (Surface) 30" x 30" x 12"  30" x 30" Hose Reel only
CS-1340-MIN (Surface) 34" x 34" x 12" 34" x 34" Reel, Extinguisher, (2) Hose Valves

Confirm with local building codes or authority having jurisdiction regarding restrictions on locked fire protection cabinets.

Powdered coated standard cabinets not designed for outdoor use.  Use other materials such as NFE fiberglass, stainless steel or galvanized cabinets for increased weather resistance.

×
