Maximum Security Hose Cabinets

Facility Type:
Federal, Provincial & State maximum security institutions where fire fighting equipment is stored within inmate or prisoner areas.

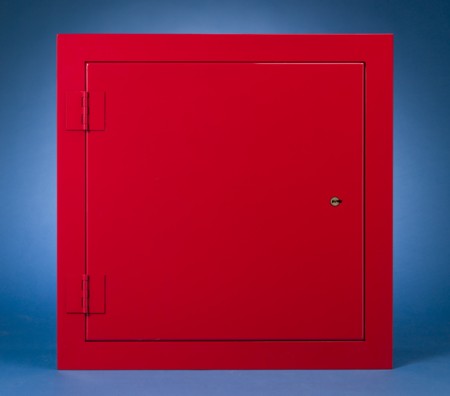

Photo to left shown with baked red enamel paint option.  Standard is grey.

Standard Product Specifications:
10 ga. FULL METAL Adjustable Fronts. Reinforced door, 1/4" return on door - Grey powder coated paint.
10 ga. painted Tubs - Grey
Hinges: Model 850T Security Hinge
Lock: Model 7010 High Security Mechanical Deadbolt Lock.
Lock: Fire Extinguisher Cabinets use Model 7017 compact security lock.

OPTIONS: Maximum Security Cabinet:
Paint Options:  Red, White, Yellow, Black
Handle: Model H2856P loop pull handle (required with padlock installation)
Door Pull:  Model 3000011 flush mounted handle (required with padlock installation)
Hinges: H2301D Heavy Duty Security Hinges
Lock:  Padlock Door Hasp
Cabinet Identification: Die Cut Decals (Red or White) Fire Extinguisher, Fire Hose, Fire Dept. Valve

Model Tub Size Frame O.D. Interior Equipment
200-2-MAX 30" x 30" x 8"  34" x 34"  100' Hose, 10 lbs. 1 1/2" & 2 1/2" Valve
CS-800-MAX (Surface) 30" x 30" x 8"  30" x 30" 100' Hose, 10 lbs. 1 1/2" & 2 1/2" Valve

Confirm with local building codes or authority having jurisdiction regarding restrictions on locked fire protection cabinets

×
